We cater to several American and European OEMS and we build parts to their design.
Roof Hooks
- Improved adjustability, stability and weight
- Higher load capacity due to new profile geometries
- Fast and flexible mounting by simple click-in
- Quick mounting adapter comes pre-assembled
- No pressure on the roof tile
- Adjustable height up to 30 mm with Rapid roof hooks

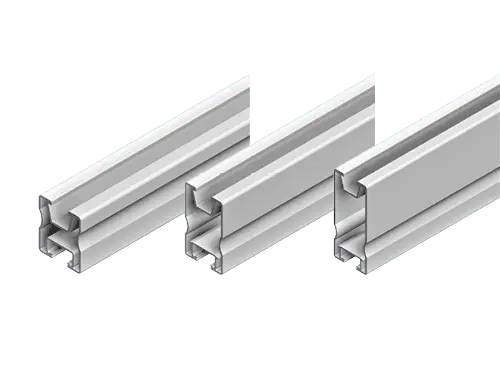

Rails
- Aluminum EN AW-6063 T66
- Reduced material with improved stability
- Optimized geometric basis
- Module bearing rails available in various lengths: 3300 mm, 4400 mm, 5500 mm, 6000 mm
- Module bearing rails available in three different construction heights: 35 mm for smaller spans, 50 mm for medium spans and 70 mm for large spans

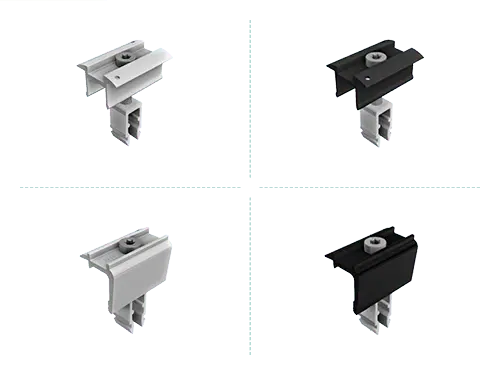

Module Clamps
- One size fits all: One middle and end clamp fits mounting module frames between 30 - 47 mm
- Designed for the module-bearing profiles
- Claws can be rotated and are therefore suitable for both vertical and horizontal (linear) module clamping
- Pre-assembled for quick installation
- Built-in grounding function with integrated grounding pin
- Available in bright and black anodized aluminium

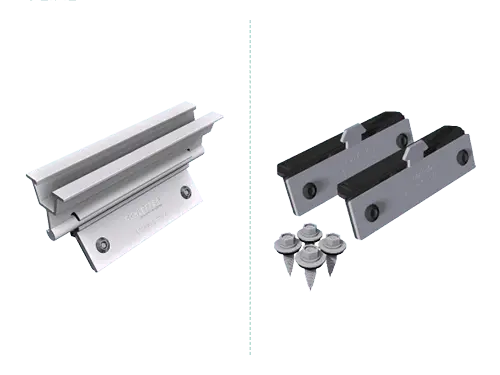

Seam Clamps
- For mounting on standing seam roofs
- Fast and direct fastening
- For a wide range of sheet metal seam roofs

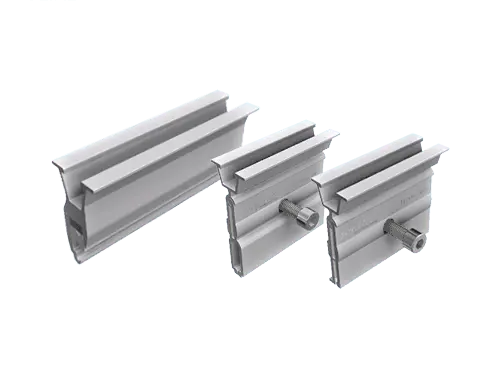

Sheet Connectors
- ClampFit
- SingleFix
For mounting on trapezoidal sheet metal roofs:

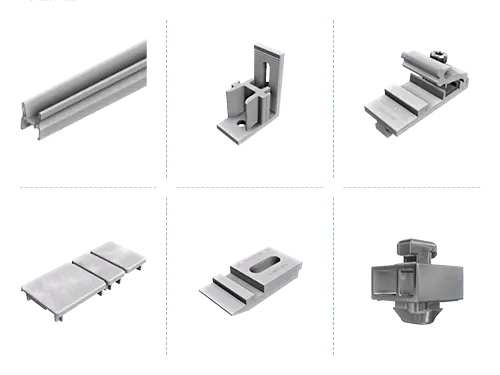

Accessories
- Connector
- Adapter
- Cross-connector
- Plastic end cap
- Hanger Bolt Adapter
- Hanger bolt sets with cap profile
